Sonnet Fusion Dual 2.5-inch SSD RAID

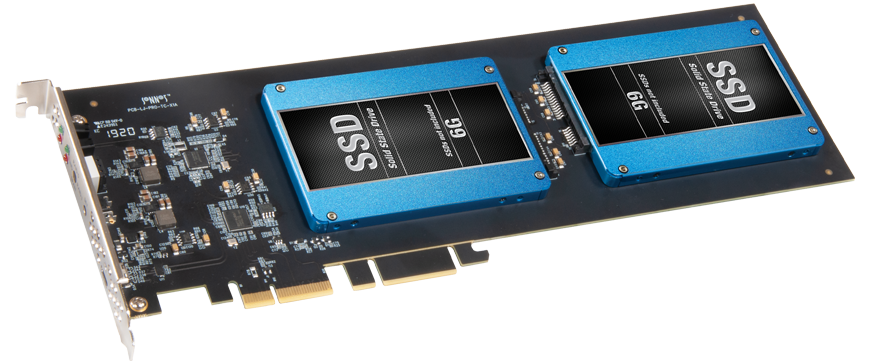

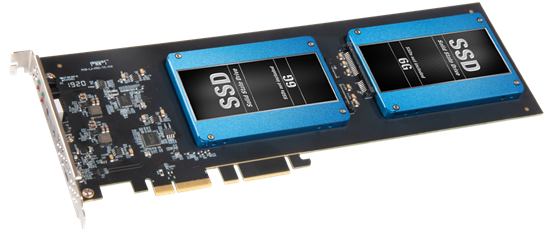

Fusion Dual 2.5-inch SSD RAID
Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller,
plus 10Gbps USB-C port • Add your own SSDs


If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 8TB capacity(1) in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.


Mac Compatibility

   Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length PCIe slot
   Mac Pro 7,1 (2019)
   macOS 10.10.5, 10.12.6+(4)
   macOS Catalina compatible
   Note: not compatible with macOS 10.11

Windows Compatibility

   Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
   Windows 10, 8.1, 7
   Windows Server 2016, 2012, 2008 (64-bit editions)


Warranty

   2-year

Form Factor

   Full-height, full-length PCIe card

Bus Interface

   PCI Express 3.0 x4

Internal Connectors

   Two SATA for 2.5-inch SSDs

External Connector

   One USB-C port (10Gbps USB 3.2 Gen 2)

SSDs Supported

   SATA 6 Gb/s

Boot Support

   No

Supported Drive Configurations

   RAID 0
   RAID 1
   Span
   JBOD

S.M.A.R.T. Status Data Reporting Support

   No
